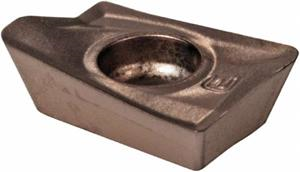

AXMT123512 E ACM300 Grade Carbide Milling Insert

  • Item Code: AXMT123512PEERE-ACM300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Cutting Width 0.2600 Inch
Grade ACM300
Corner Radius 0.0160 Inch
Relief Angle 11 Degree
Insert Size 123512
Material Solid Carbide
Max Depth of Cut 0.3940 Inch
Insert Style AXMT
Face Width 0.0610 Inch
Product Name Milling Insert
Included Angle 85
Applicable Materials Heat Resistant Alloy
Brand Sumitomo
Chipbreaker Type PEERE
Length 0.4720 Inch
Insert Series WEX2000
Thickness 0.1380 Inch
