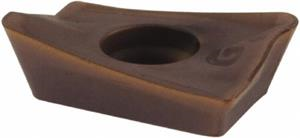

AXMT123512 ACP300 Grade Carbide Milling Insert

  • Item Code: AXMT123512PEERG ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type PEERG
Brand Sumitomo
Face Width 0.0610 Inch
Cutting Width 0.2600 Inch
Product Name Milling Insert
Thickness 0.1380 Inch
Applicable Materials Steel
Corner Radius 0.0160 Inch
Included Angle 85
Insert Series WEX2000
Insert Style AXMT
Grade ACP300
Insert Size 123512
Material Solid Carbide
Relief Angle 11 Degree
Length 0.4720 Inch
Max Depth of Cut 0.3940 Inch
