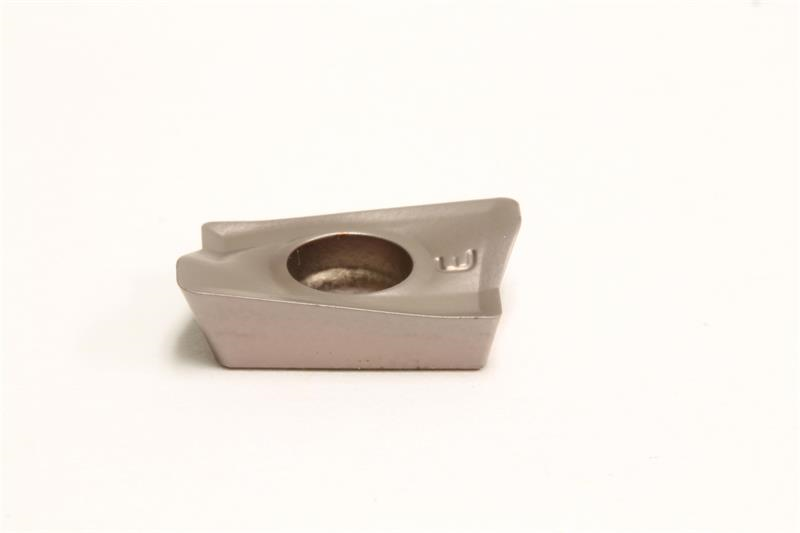

AXMT170504 ACP200 Grade Carbide Milling Insert

  • Item Code: AXMT170504PEERG ACP200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel
Corner Radius 0.0160 Inch
Product Name Milling Insert
Thickness 0.2190 Inch
Material Solid Carbide
Chipbreaker Type PEERG
Max Depth of Cut 0.5510 Inch
Cutting Width 0.4020 Inch
Grade ACP200
Included Angle 85
Insert Size 170504
Insert Style AXMT
Face Width 0.1180 Inch
Insert Series WEX3000
Length 0.6890 Inch
Brand Sumitomo
Relief Angle 11 Degree
