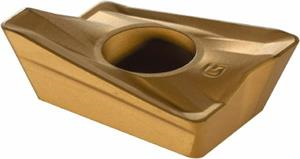

AXMT170508 ACK200 Grade Carbide Milling Insert

  • Item Code: AXMT170508PEERG ACK200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Cast Iron
Insert Style AXMT
Insert Series WEX3000
Insert Size 170508
Relief Angle 11 Degree
Face Width 0.1180 Inch
Material Solid Carbide
Thickness 0.2190 Inch
Brand Sumitomo
Chipbreaker Type PEERG
Length 0.6890 Inch
Max Depth of Cut 0.5510 Inch
Corner Radius 0.0310 Inch
Cutting Width 0.4020 Inch
Grade ACK200
Product Name Milling Insert
Included Angle 85
