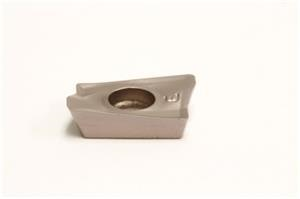

AXMT170508 ACP100 Grade Carbide Milling Insert

  • Item Code: AXMT170508PEERG-ACP100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade ACP100
Corner Radius 0.0310 Inch
Face Width 0.1180 Inch
Length 0.6890 Inch
Brand Sumitomo
Cutting Width 0.4020 Inch
Insert Size 170508
Relief Angle 11 Degree
Insert Series WEX3000
Insert Style AXMT
Applicable Materials Steel
Included Angle 85
Thickness 0.2190 Inch
Chipbreaker Type PEERG
Material Solid Carbide
Max Depth of Cut 0.5510 Inch
Product Name Milling Insert
