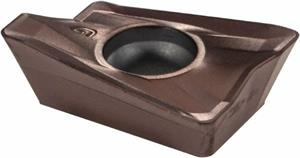

INSERT COATED CARBIDE SUMITOMO 14HA313

  • Item Code: AXMT170508PEERG ACP200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style AXMT
Chipbreaker Type PEERG
Included Angle 85
Max Depth of Cut 0.5510 Inch
Applicable Materials Steel
Relief Angle 11 Degree
Thickness 0.2190 Inch
Corner Radius 0.0310 Inch
Length 0.6890 Inch
Cutting Width 0.4020 Inch
Grade ACP200
Face Width 0.1180 Inch
Brand Sumitomo
Material Solid Carbide
Product Name Milling Insert
Insert Series WEX3000
Insert Size 170508
