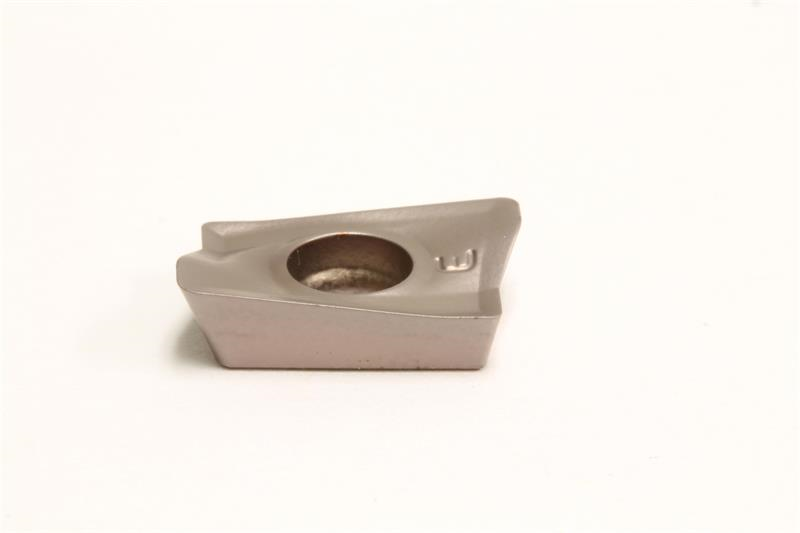

AXMT170508 ACP300 Grade Carbide Milling Insert

  • Item Code: AXMT170508PEERH ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0310 Inch
Cutting Width 0.4020 Inch
Max Depth of Cut 0.5510 Inch
Material Solid Carbide
Applicable Materials Steel
Product Name Milling Insert
Insert Series WEX3000
Insert Size 170508
Face Width 0.1180 Inch
Included Angle 85
Relief Angle 11 Degree
Chipbreaker Type PEERH
Insert Style AXMT
Length 0.6890 Inch
Thickness 0.2190 Inch
Brand Sumitomo
Grade ACP300
