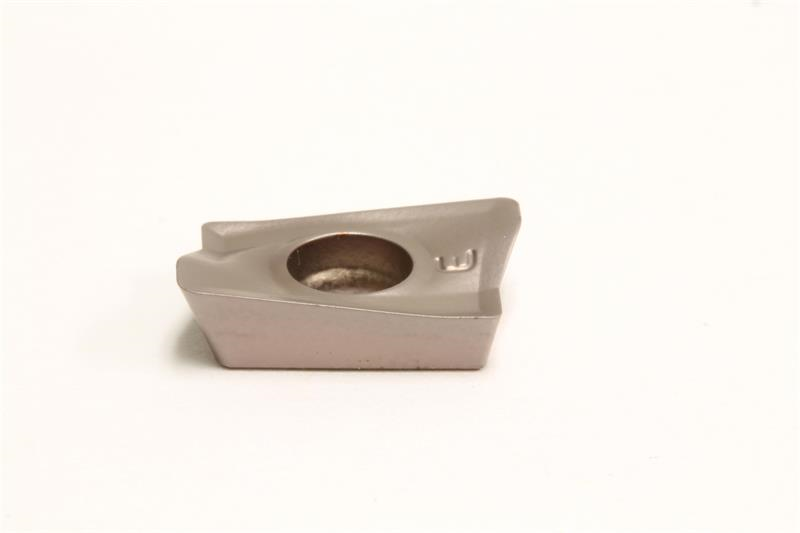

AXMT170508 ACP200 Grade Carbide Milling Insert

  • Item Code: AXMT170508PEERL ACP200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 170508
Insert Style AXMT
Insert Series WEX3000
Applicable Materials Steel
Relief Angle 11 Degree
Thickness 0.2190 Inch
Brand Sumitomo
Chipbreaker Type PEERL
Face Width 0.1180 Inch
Included Angle 85
Material Solid Carbide
Cutting Width 0.4020 Inch
Grade ACP200
Product Name Milling Insert
Corner Radius 0.0310 Inch
Length 0.6890 Inch
Max Depth of Cut 0.5510 Inch
