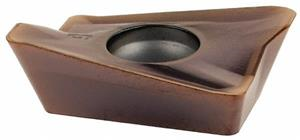

AXMT170512 ACP300 Grade Carbide Milling Insert

  • Item Code: AXMT170512PEERG ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0470 Inch
Insert Size 170512
Face Width 0.1180 Inch
Grade ACP300
Included Angle 85
Length 0.6890 Inch
Thickness 0.2190 Inch
Applicable Materials Steel
Product Name Milling Insert
Material Solid Carbide
Cutting Width 0.4020 Inch
Insert Series WEX3000
Insert Style AXMT
Chipbreaker Type PEERG
Max Depth of Cut 0.5510 Inch
Brand Sumitomo
Relief Angle 11 Degree
