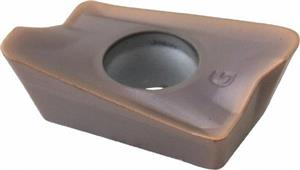

INSERT GRADE ACP300 COATED SUMITOMO

  • Item Code: AXMT170516PEERG ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 170516
Coating/Finish ACP300
Insert Series WEX3000
Material Solid Carbide
Product Name Milling Insert
Brand Sumitomo
Cutting Width 0.4020 Inch
Included Angle 85
Chipbreaker Type PEERG
Length 0.6890 Inch
Max Depth of Cut 0.5510 Inch
Face Width 0.1180 Inch
Grade ACP300
Applicable Materials Steel
Corner Radius 0.0630 Inch
Relief Angle 11 Degree
Thickness 0.2190 Inch
Insert Style AXMT
