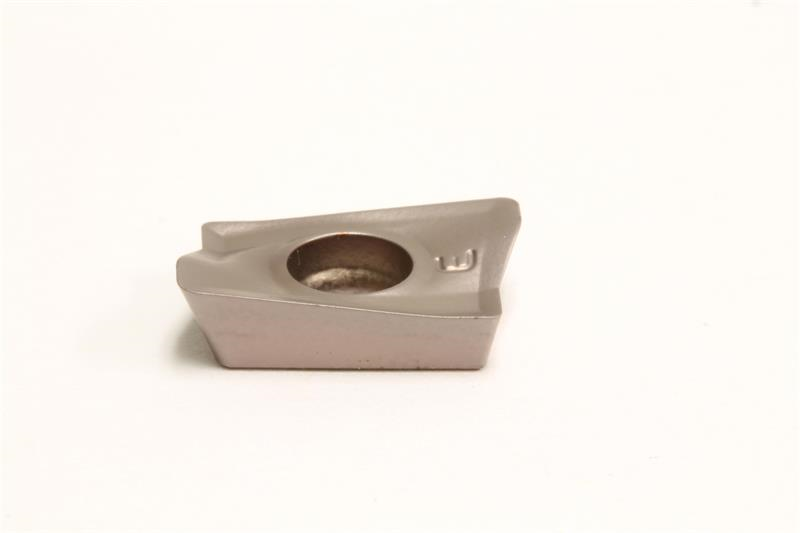

AXMT170520 ACP200 Grade Carbide Milling Insert

  • Item Code: AXMT170520PEERG ACP200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0790 Inch
Insert Size 170520
Insert Series WEX3000
Relief Angle 11 Degree
Material Solid Carbide
Cutting Width 0.4020 Inch
Grade ACP200
Included Angle 85
Max Depth of Cut 0.5510 Inch
Chipbreaker Type PEERG
Product Name Milling Insert
Brand Sumitomo
Insert Style AXMT
Thickness 0.2190 Inch
Face Width 0.1180 Inch
Length 0.6890 Inch
Applicable Materials Steel
