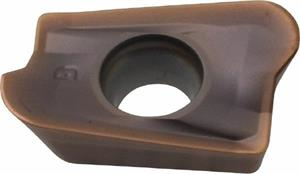

AXMT170530 ACP300 Grade Carbide Milling Insert

  • Item Code: AXMT170530PEERG ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 170530
Chipbreaker Type PEERG
Included Angle 85
Corner Radius 0.1180 Inch
Cutting Width 0.4020 Inch
Max Depth of Cut 0.5510 Inch
Material Solid Carbide
Brand Sumitomo
Grade ACP300
Applicable Materials Steel
Product Name Milling Insert
Insert Style AXMT
Length 0.6890 Inch
Thickness 0.2190 Inch
Face Width 0.1180 Inch
Relief Angle 11 Degree
Insert Series WEX3000
