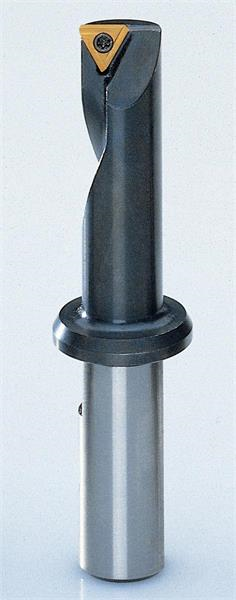

0.22 Inch Min Bore Diameter, 0.315 Inch Shank Diameter, Right Hand Holder, FK-UJ, 1.89 Inch Long, Indexable Boring Bar
- Item Code: B00 37010
- Brand: Komet
- Unit Size: 1
Description
0.866 Inch Max Bore Depth, WOHX 02T001 Insert Compatibility, Screw Holding Method
Tech Specs
Back To Top| Center to Cutting Edge (Decimal Inch) | 0.1080 |
|---|---|
| Complete Insert Compatibility | WOHX 02T001EL-G12; WOHX 02T001FL-G12 |
| Insert Compatibility | WOHX 02T001 |
| Maximum Bore Depth (Decimal Inch) | 0.2200 |
| Minimum Bore Diameter (Decimal Inch) | 0.2200 |
| Overall Length | 1.8900 Inch |
| Insert Holding Method | Screw |
| Multi-Use Tool (Yes/No) | No |
| Brand | Komet |
| Through Coolant | No |
| Insert Inscribed Circle (Inch) | 0.1570 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Inscribed Circle (mm) | 3.99 |
| Type | Indexable Boring Bar |
| Hand of Holder | Right Hand |
| Lead Angle | 90 Degree |
| Toolholder Style | FK-UJ |
