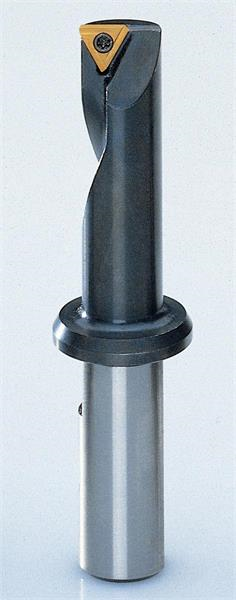

0.472 Inch Min Bore Diameter, 0.315 Inch Shank Diameter, Right Hand Holder, FK-UJ, 2.638 Inch Long, Indexable Boring Bar
- Item Code: B0015530
- Brand: Komet
- Unit Size: 1
Description
1.496 Inch Max Bore Depth, TOGX 090204, TOHX 090204 Insert Compatibility, Screw Holding Method
Tech Specs
Back To Top| Center to Cutting Edge (Decimal Inch) | .2340 |
|---|---|
| Complete Insert Compatibility | TOGX 090204EN-14; TOGX 090204FN-12; TOGX 090204TN; TOHX 090204EL-G06 |
| Insert Compatibility | TOGX 090204; TOHX 090204 |
| Maximum Bore Depth (Decimal Inch) | 1.4960 |
| Minimum Bore Diameter (Decimal Inch) | 0.4720 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.4720 |
| Overall Length (Decimal Inch) | 2.6380 |
| Toolholder Style | FK-UJ |
| Type | Indexable Boring Bar |
| Multi-Use Tool (Yes/No) | No |
| Hand of Holder | Right Hand |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 5.56 |
| Lead Angle | 90 Degree |
| Brand | Komet |
| Insert Inscribed Circle (Inch) | 7/32 |
| Shank Diameter (Decimal Inch) | .3150 |
| Through Coolant | No |
