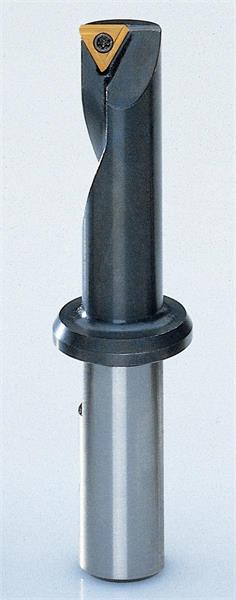

0.433 Inch Min Bore Diameter, 0.63 Inch Shank Diameter, Right Hand Holder, FK-UJ, 3.346 Inch Long, Indexable Boring Bar
- Item Code: B0015710
- Brand: Komet
- Unit Size: 1
Description
1.575 Inch Max Bore Depth, TOGX 06T102, TOHX 06T103 Insert Compatibility, Screw Holding Method
Tech Specs
Back To Top| Hand of Holder | Right Hand |
|---|---|
| Insert Inscribed Circle (mm) | 3.99 |
| Maximum Bore Depth (Decimal Inch) | 1.5750 |
| Overall Length (Decimal Inch) | 3.3460 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Toolholder Style | FK-UJ |
| Type | Indexable Boring Bar |
| Brand | Komet |
| Insert Inscribed Circle (Decimal Inch) | .1570 |
| Through Coolant | No |
| Center to Cutting Edge (Decimal Inch) | .2150 |
| Complete Insert Compatibility | TOGX 06T102EN-14; TOGX 06T102FN-12; TOGX 06T102TN; TOHX 06T103EL-G06 |
| Insert Holding Method | Screw |
| Multi-Use Tool (Yes/No) | No |
| Insert Compatibility | TOGX 06T102; TOHX 06T103 |
| Lead Angle | 90 Degree |
| Minimum Bore Diameter (Decimal Inch) | 0.4330 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.4330 |
