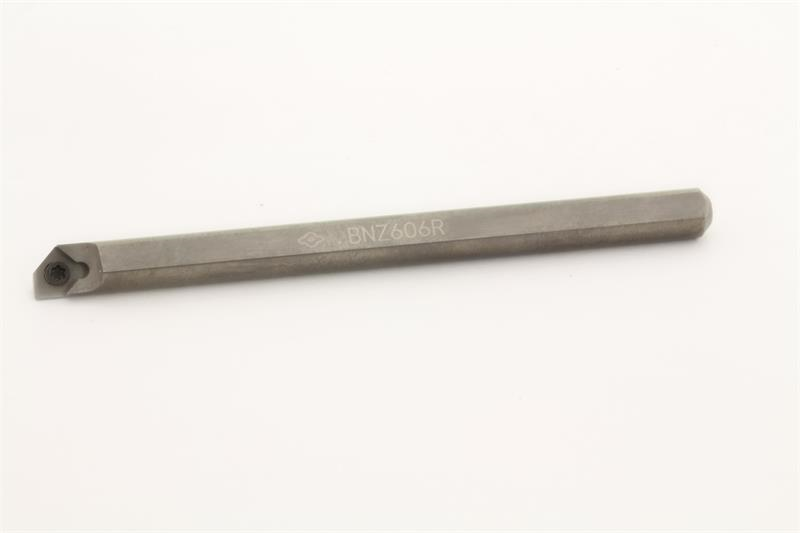

7.0mm Minimum Bore Diameter, 6.0mm Shank Diameter, Carbide, BNZ Style, 2.4mm Right Hand Holder Indexable Boring Bar

  • Item Code: BNZ606R
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide shank and head adds rigidity.
    • Max. overhang, L = 5 x D.
    • Minimal bar deformation produces excellent boring accuracy.
    • Minimal vibration produces a superior surface finish.

Tech Specs

Back To Top
Overall Length 24 MM
Rake Angle 0.2 Deg
Series BNZ
Min Bore Diameter Metric 7.00 mm
Product Name Boring Bar
Shank Diameter 6.0 MM
Brand Sumitomo
Material Solid Carbide
Hand of Holder Right
