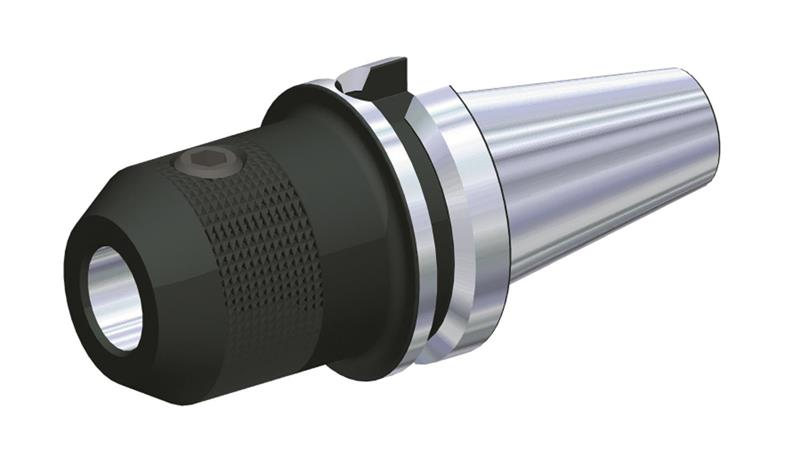

5/8 Inch Hole Diameter, M12 Drawbar Thread, BT30 Taper Shank End Mill Holder

  • Item Code: BT30EM062236
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 0.6250
Adapt/Shank/Bore Diameter WKPS F 5/8
Adapter/Shank/Bore Diameter (Inch) 1.2500
Body Diameter 1 Workpce Side (mm) 41.275
Body Diameter Machine Side (In) 1.8110
Body Diameter Machine Side (mm) 46.000
Gage Length 1 (Inch) 2.3600
Gage Length 1 (Metric) 59.944
Overall Length (Inch) 4.2660
Overall Length (Metric) 108.344
System Size Machine Side BT30
Usable Length (Inch) 1.4939
Usable Length (Metric) 37.944
Adapter Style Machine Side-EPP SKG51 MASBTstyleADw/CentCool
Adapter/Shank/Bore Diameter (Fractional) 1 1/4
Adapt/Shank/Bore Diameter WKPS (mm) 15.875
Adapter Type Machine Side Taper Shank
Adapter/Shank/Bore Diameter (mm) 31.750
Shank Length (Inch) 1.9843
Clamp Screw ID Drive Size 1/4
Adapter Size Workpiece Side 0625
Adapter Type Machine Side-EPP SKG - Steep Taper
Shank Length (Metric) 50.400
Adapter Size Machine Side-EPP 0300
Adapter Style Machine Side BT-JIS.B 6339
Body Diameter 1 Workpce Side (In) 1.6250
Brand WIDIA-Erickson
Flange Length (Metric) 20.000
Units of Tool (Extract) IN - Inch
