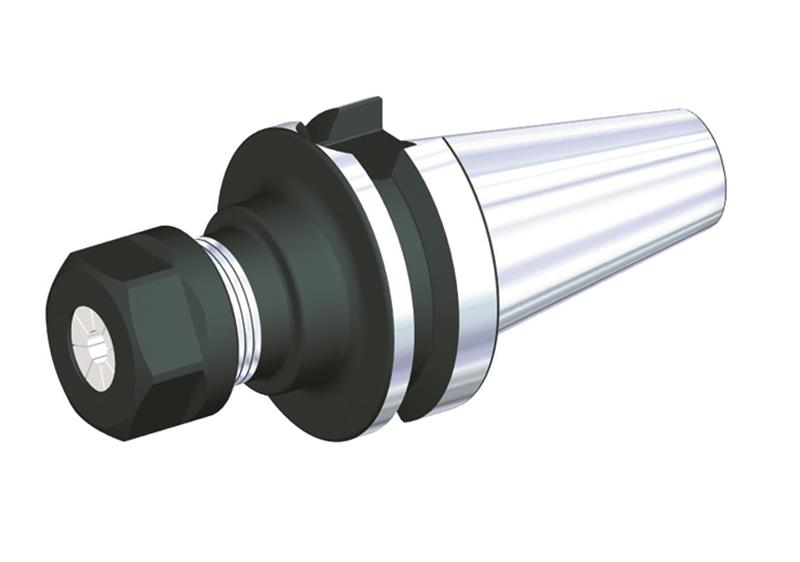

0.02 to 0.41 Inch Collet Capacity, 60mm Projection, BT30 Taper Shank, Series ER16 Collet Chuck
- Item Code: BT30ER16060M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER16
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 1.2992 Inch |
|---|---|
| Body Diameter | 1.1024 Inch |
| Flange Length | 20.00 MM |
| Gage Length | 2.3620 Inch |
| Nut Diameter | 1.1020 Inch |
| Overall Length | 4.2677 Inch |
| Shank Length | 1.9055 Inch |
| Clamping Length | 1.2600 Inch |
| Product Name | Collet Chucks |
| Shank Diameter | 1.2500 Inch |
| Brand | WIDIA-Erickson |
| Hand of Tool | Neutral |
| Shank Style | Taper |
