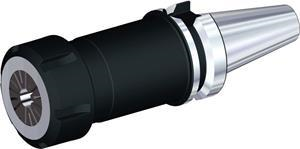

150 mm ER16 BT30 Collet Chuck

  • Item Code: BT30ER16150M
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length (mm) 198.40 mm
Overall Length (in.) 7.8110"
Clamping Hole Length (mm) 10.274 mm
Gage Length (mm) 150.00 mm
Adapter/Shank/Bore Dia (in.) 1.2500"
Collet Series ER16
Gage Length (in.) 5.9055"
Lock Nut Dia. (mm) 32.00 mm
Adapter/Shank/Bore Dia (mm) 31.75 mm
Clamping Hole Length (in.) 0.4045"
Lock Nut Dia. (in.) 1.2598"
Brand WIDIA
Coolant Thru Yes
