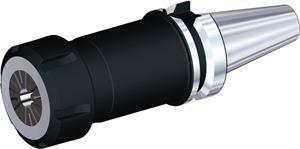

100 mm ER20 BT30 Collet Chuck

  • Item Code: BT30ER20100M
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length (in.) 3.9370"
Collet Series ER20
Adapter/Shank/Bore Dia (in.) 1.2500"
Overall Length (mm) 148.40 mm
Overall Length (in.) 5.8425"
Adapter/Shank/Bore Dia (mm) 31.75 mm
Coolant Thru Yes
Lock Nut Dia. (in.) 1.3780"
Brand WIDIA
Clamping Hole Length (in.) 0.4040"
Clamping Hole Length (mm) 10.27 mm
Gage Length (mm) 100.00 mm
Lock Nut Dia. (mm) 35.00 mm
