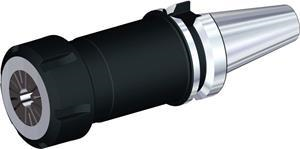

42mm x 60 mm BT30 ER25 Single-Angle Collet Chuck

  • Item Code: BT30ER25060M
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter/Shank/Bore Dia (mm) 31.75 mm
Brand Widia-Erickson
Coolant Thru Yes
Overall Length (mm) 108.40 mm
Adapter/Shank/Bore Dia (in.) 1.2500"
Collet Series ER25
Gage Length (in.) 2.3622"
Lock Nut Dia. (in.) 1.6535"
Lock Nut Dia. (mm) 42.00 mm
Gage Length (mm) 60.00 mm
Overall Length (in.) 4.2677"
Clamping Hole Length (in.) 0.4045"
Clamping Hole Length (mm) 10.275 mm
