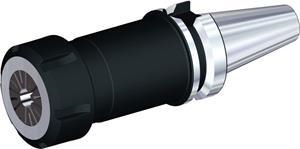

100 mm ER25 BT30 Collet Chuck

  • Item Code: BT30ER25100M
  • Brand: Widia-Hanita
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Collet Series ER25
Overall Length (in.) 5.8425"
Overall Length (mm) 148.40 mm
Brand Widia-Hanita
Clamping Hole Length (in.) 0.4045"
Adapter/Shank/Bore Dia (in.) 1.2500"
Coolant Thru Yes
Gage Length (mm) 100.00 mm
Clamping Hole Length (mm) 10.274 mm
Lock Nut Dia. (in.) 1.6535"
Adapter/Shank/Bore Dia (mm) 31.75 mm
Gage Length (in.) 3.9370"
Lock Nut Dia. (mm) 42.00 mm
