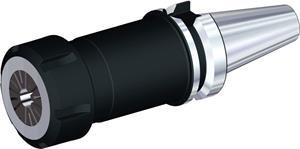

70 mm ER32 BT30 Collet Chuck

  • Item Code: BT30ER32070M
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length (mm) 70.00 mm
Overall Length (mm) 118.40 mm
Overall Length (in.) 4.6614"
Clamping Hole Length (mm) 10.27 mm
Clamping Hole Length (in.) 0.4040"
Adapter/Shank/Bore Dia (in.) 1.2500"
Adapter/Shank/Bore Dia (mm) 31.75 mm
Brand Widia-Erickson
Lock Nut Dia. (in.) 1.9685"
Lock Nut Dia. (mm) 50.00 mm
Collet Series ER32
Coolant Thru Yes
Gage Length (in.) 2.7559"
