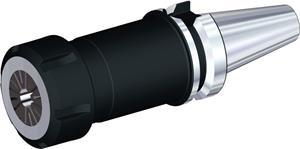

100 mm ER32 BT30 Collet Chuck

  • Item Code: BT30ER32100M
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Brand WIDIA
Adapter/Shank/Bore Dia (mm) 31.75 mm
Overall Length (in.) 5.8425"
Clamping Hole Length (in.) 0.4045"
Lock Nut Dia. (mm) 50.00 mm
Gage Length (in.) 3.9370"
Lock Nut Dia. (in.) 1.9685"
Collet Series ER32
Coolant Thru Yes
Gage Length (mm) 100.00 mm
Adapter/Shank/Bore Dia (in.) 1.2500"
Clamping Hole Length (mm) 10.27 mm
Overall Length (mm) 148.40 mm
