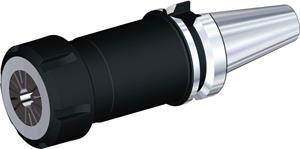

100 mm ER40 BT30 Collet Chuck

  • Item Code: BT30ER40100M
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter/Shank/Bore Dia (in.) 1.2500"
Adapter/Shank/Bore Dia (mm) 31.75 mm
Lock Nut Dia. (in.) 2.4803"
Overall Length (in.) 5.8425"
Overall Length (mm) 148.40 mm
Brand WIDIA
Clamping Hole Length (in.) 0.4045"
Lock Nut Dia. (mm) 63.00 mm
Collet Series ER40
Gage Length (in.) 3.9370"
Clamping Hole Length (mm) 10.27 mm
Coolant Thru Yes
Gage Length (mm) 100.00 mm
