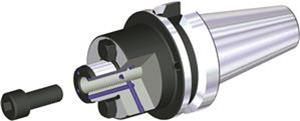

BT30 16mm Arbor x 50mm Gage Length SMC MM-BT Form B/AD Shell Mill Adapter

  • Item Code: BT30SMC16050M
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 0.6299
Adapt/Shank/Bore Diameter WKPS (mm) 16.000
Adapter Size Machine Side-EPP 0300
Adapter Style Machine Side BT-JIS.B 6339
Adapter/Shank/Bore Diameter (Fractional) 1 1/4
Body Diameter 1 Workpce Side (In) 1.7323
Body Diameter 1 Workpce Side (mm) 44.000
Cutter Ret Screw ID Drive Size 6 mm
Flange-Front End Dist (In) 1.7520
Flange-Front End Dist (mm) 44.500
Gage Length 1 (Inch) 1.9685
Gage Length 1 (Metric) 50.000
Overall Length (Inch) 4.5236
Overall Length (Metric) 114.900
Pilot Length (Inch) 0.6496
Pilot Length (Metric) 16.500
Shank Length (Inch) 1.9843
Shank Length (Metric) 50.400
Usable Length (Inch) 1.1024
Usable Length (Metric) 28.000
Adapter Style Machine Side-EPP SKG51 MASBTstyleADw/CentCool
Body Diameter Machine Side (In) 1.8102
Adapter Type Machine Side Taper Shank
Adapter/Shank/Bore Diameter (mm) 31.750
System Size Machine Side BT30
Body Diameter Machine Side (mm) 45.980
Brand WIDIA-Erickson
Flange Length (Metric) 20.000
Adapter Size Workpiece Side 0160
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (Inch) 1.2500
Units of Tool (Extract) MM - Metric
