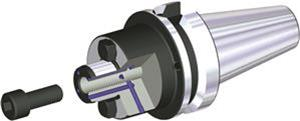

BT30 22mm Arbor x 50mm Gage Length SMC MM-BT Form B/AD Shell Mill Adapter

  • Item Code: BT30SMC22050M
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 0.8661
Adapt/Shank/Bore Diameter WKPS (mm) 22.000
Adapter Size Workpiece Side 0220
Adapter Style Machine Side-EPP SKG51 MASBTstyleADw/CentCool
Body Diameter 1 Workpce Side (In) 1.9291
Body Diameter 1 Workpce Side (mm) 49.000
Body Diameter 2 Workpce Sde (In) 1.6929
Body Diameter 2 Workpce Sde (mm) 43.000
Body Diameter Machine Side (In) 1.8102
Body Diameter Machine Side (mm) 45.980
Cutter Ret Screw ID Drive Size 8 mm
Flange-Front End Dist (In) 1.8307
Flange-Front End Dist (mm) 46.500
Max Interference Diameter (Inch) 1.6929
Overall Length (Inch) 4.6024
Overall Length (Metric) 116.900
Pilot Length (Inch) 0.7283
Pilot Length (Metric) 18.500
Shank Length (Inch) 1.9843
Shank Length (Metric) 50.400
Adapter Size Machine Side-EPP 0300
Adapter Style Machine Side BT-JIS.B 6339
Adapter Type Machine Side Taper Shank
System Size Machine Side BT30
Flange Length (Metric) 20.000
Units of Tool (Extract) MM - Metric
Brand WIDIA-Erickson
Gage Length 1 (Inch) 1.9685
Usable Length (Inch) 1.1024
Usable Length (Metric) 28.000
Adapter/Shank/Bore Diameter (mm) 31.750
Gage Length 1 (Metric) 50.000
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (Fractional) 1 1/4
Adapter/Shank/Bore Diameter (Inch) 1.2500
