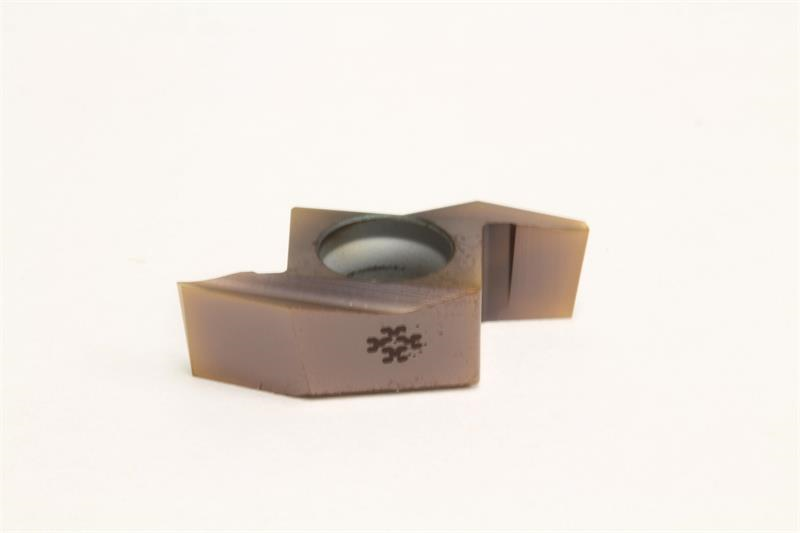

BTR3505 AC530U Grade Carbide Turning Insert

  • Item Code: BTR3505 AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type SBT
Corner Radius 0.05 MM
Grade AC530U
Insert Size 3505
Rake Angle 15 Degree
Thickness 3.8 MM
Brand Sumitomo
Inscribed Circle 6.8 MM
Material Solid Carbide
Included Angle 60
Product Name Turning Insert
Insert Style BTR
Insert Type Positive
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
