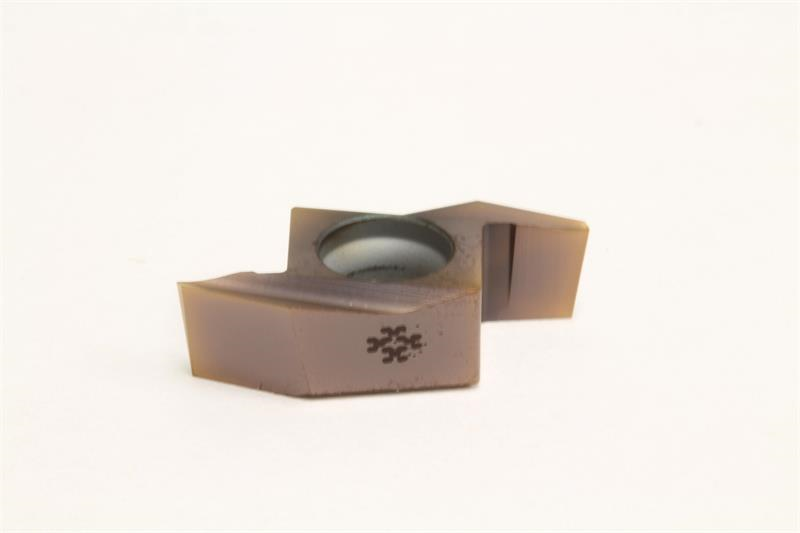

BTR5515 AC530U Grade Carbide Turning Insert

  • Item Code: BTR5515-AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.15 MM
Inscribed Circle 6.8 MM
Insert Size 5515
Insert Style BTR
Chipbreaker Type SBT
Insert Type Positive
Grade AC530U
Included Angle 60
Rake Angle 15 Degree
Brand Sumitomo
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Material Solid Carbide
Thickness 3.8 MM
