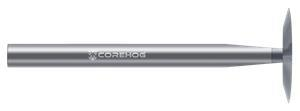

1.0000" (1) Diameter x Smooth Edge TiCN Coated Carbide Valve Stem Slicer with Integral Shank

  • Item Code: C15602
  • Brand: CoreHog
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Excellent for finish bevel or knife edge parts
    • Often used to separate the knife edge from the surrounding material with parting off motion
    • Integral shank design provides more side clearance for machining hard to reach or high depth side cuts
    • Tapered neck for added clearance
    • TiCN coating for extended tool life and improved wear resistance
    • Solid carbide
    • Precision manufactured in the USA

Tech Specs

Back To Top
Material Solid Carbide
Overall Length 3.000" (3)
Shank Diameter 0.2500" (1/4)
Brand CoreHog
End Length 0.0700"
Decimal Cutting Diameter 1.0000"
Coating TiCN
Type Smooth
Fractional Cutting Diameter 1"
