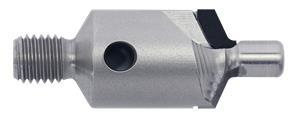

0.5000" (1/2) Diameter x 100 Deg. Included Angle x 0.1990" Pilot Diameter 3 Flutes PCD Diamond Coated Countersink

  • Item Code: C74331
  • Brand: CoreHog
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Provides excellent performance in abrasive materials like CFRP, fiberglass, and Kevlar
    • Achieve up to 50x the tool life over high speed steel or carbide tools
    • Superior tool life
    • For use in both hand and CNC operations
    • PCD diamond brazed onto solid carbide body for outstanding microhardness and abrasion resistance for significant improvement in tool life
    • Precision manufactured in Italy

Tech Specs

Back To Top
Brand CoreHog
Shank Diameter 0.5000" (1/2)
End Length 0.2000"
Material Solid Carbide
Angle per Side 50
Pilot Diameter 0.1990"
Coating/Finish PCD
Fractional Diameter 1/2"
Overall Length 1.365"
Assembly Pairing Size 1/4/2028
Number of Flutes 3
Size 1/4"-28
Decimal Diameter 0.5000"
Included Angle 100
