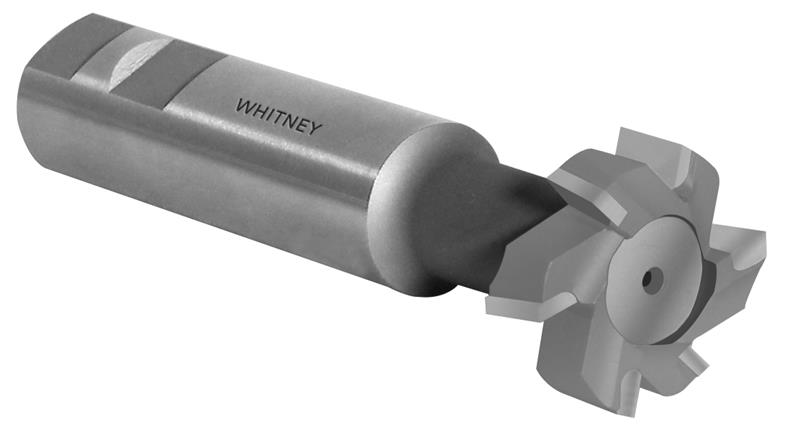

1/4 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: C802500T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
Neck Diameter 17/64"
UPC 648672350872
Coating/Finish TiN
Metric Diameter 14.28 mm
OD Tolerance 0.010"
Width Tolerance +0", -0.005"
Brand Whitney Tool
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Neck Length 35/64"
Cut Width 15/64"
Shank Diameter Tolerance +0", -0.0005"
Fractional Diameter 9/16"
Material Carbide Tipped
Overall Length (Inch) 2-19/32"
Number of Teeth 6
Shank Type Weldon
Shank Diameter 1/2"
