5/16 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C803125
  • Brand: Whitney Tool
  • Unit Size: 1

Description

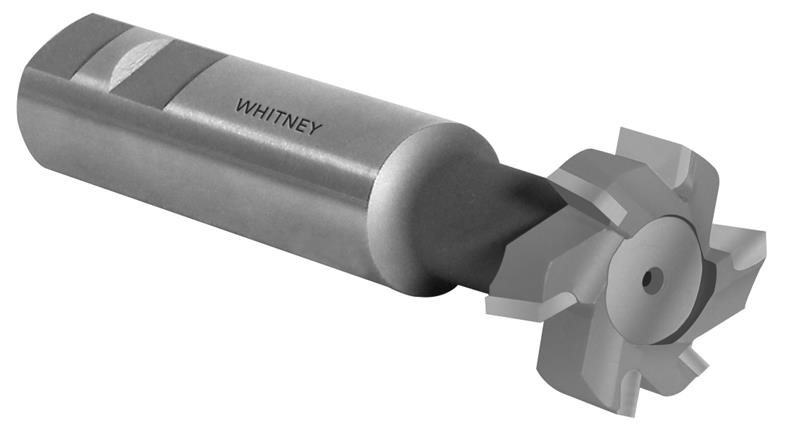

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
Metric Diameter 16.67 mm
UPC 648672300884
Neck Length 39/64"
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Coating/Finish None
Material Carbide Tipped
OD Tolerance 0.010"
Shank Diameter 1/2"
Shank Diameter Tolerance +0", -0.0005"
Overall Length (Inch) 2-11/16"
Cut Width 17/64"
Fractional Diameter 21/32"
Neck Diameter 21/64"
Brand Whitney Tool
Number of Teeth 6
Shank Type Weldon
