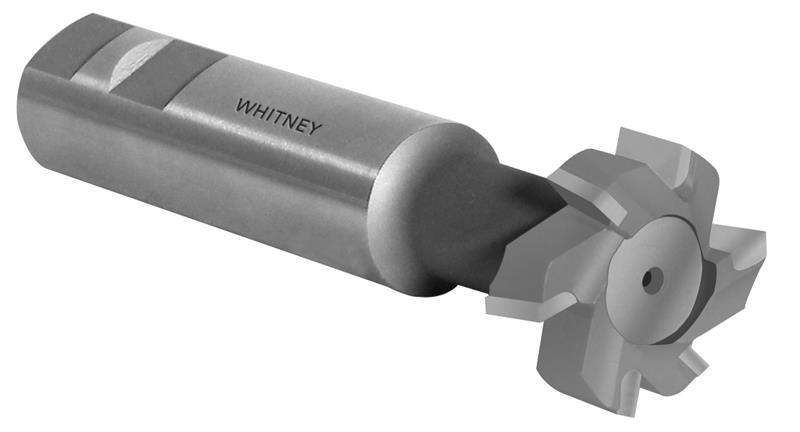

5/16 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: C803125T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672350889
Width Tolerance +0", -0.005"
Metric Diameter 16.67 mm
Neck Length 39/64"
Overall Length (Inch) 2-11/16"
Tooth Configuration Alt. 7 deg. Axial Rake
OD Tolerance 0.010"
Shank Diameter Tolerance +0", -0.0005"
Neck Diameter 21/64"
Number of Teeth 6
Shank Type Weldon
Cut Width 17/64"
Material Carbide Tipped
Coating/Finish TiN
Brand Whitney Tool
Fractional Diameter 21/32"
Shank Diameter 1/2"
Style Bolt Size
