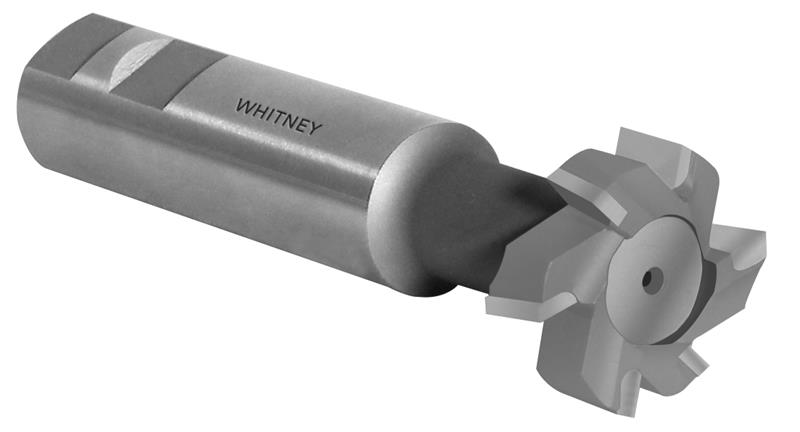

3/8 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C803750
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300891
Cut Width 21/64"
Fractional Diameter 25/32"
OD Tolerance 0.010"
Shank Diameter 3/4"
Shank Diameter Tolerance +0", -0.0005"
Overall Length (Inch) 3-1/4"
Number of Teeth 6
Shank Type Weldon
Metric Diameter 19.84 mm
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Coating/Finish None
Material Carbide Tipped
Neck Length 55/64"
Neck Diameter 13/32"
Brand Whitney Tool
