1/2 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C805000
  • Brand: Whitney Tool
  • Unit Size: 1

Description

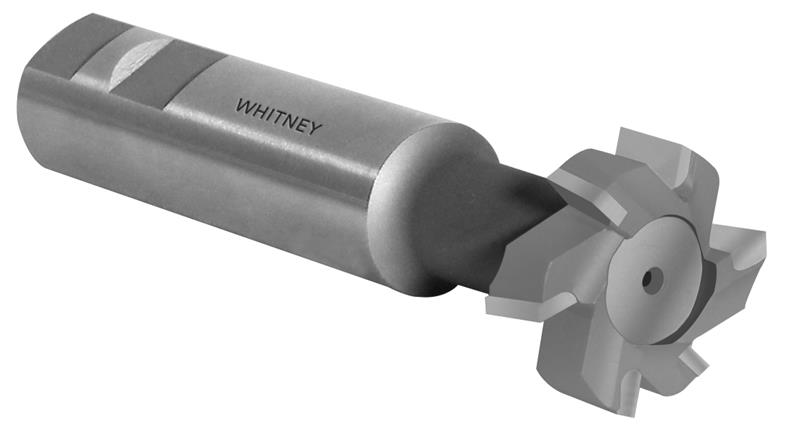

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300907
Number of Teeth 6
Shank Type Weldon
Coating/Finish None
Material Carbide Tipped
Shank Diameter Tolerance +0", -0.0005"
Fractional Diameter 31/32"
Neck Length 63/64"
OD Tolerance 0.010"
Metric Diameter 24.61 mm
Shank Diameter 3/4"
Neck Diameter 17/32"
Width Tolerance +0", -0.005"
Brand Whitney Tool
Cut Width 25/64"
Overall Length (Inch) 3-7/16"
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
