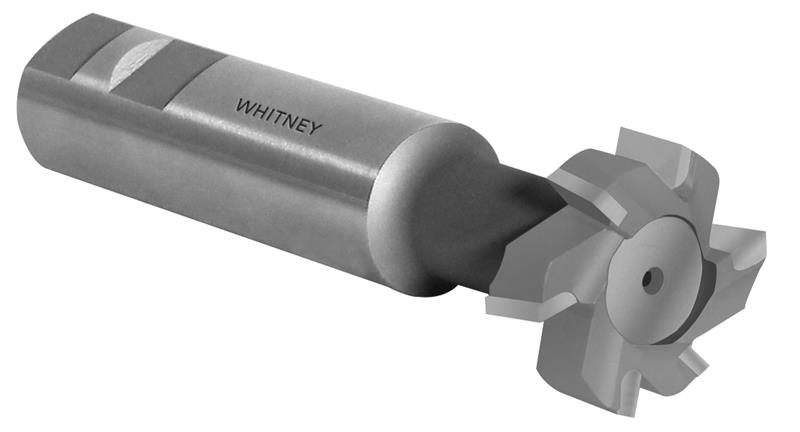

1/2 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: C805000T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672350902
Neck Length 63/64"
Number of Teeth 6
Shank Type Weldon
Brand Whitney Tool
Overall Length (Inch) 3-7/16"
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Metric Diameter 24.61 mm
Width Tolerance +0", -0.005"
Material Carbide Tipped
Coating/Finish TiN
OD Tolerance 0.010"
Cut Width 25/64"
Fractional Diameter 31/32"
Neck Diameter 17/32"
Shank Diameter Tolerance +0", -0.0005"
Shank Diameter 3/4"
