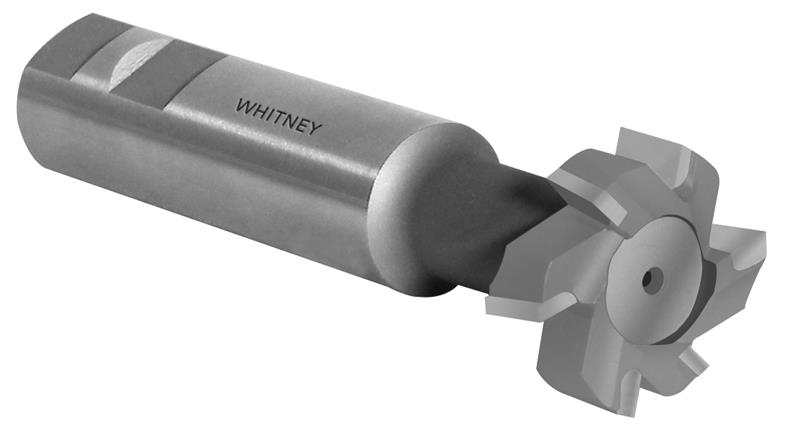

5/8 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C806250
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300914
Brand Whitney Tool
Coating/Finish None
Material Carbide Tipped
Metric Diameter 31.75 mm
Number of Teeth 6
Shank Type Weldon
Overall Length (Inch) 3-15/16"
Neck Length 1-9/64"
Style Bolt Size
Shank Diameter 1"
Shank Diameter Tolerance +0", -0.0005"
Cut Width 31/64"
Fractional Diameter 1-1/4"
OD Tolerance 0.010"
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Neck Diameter 21/32"
