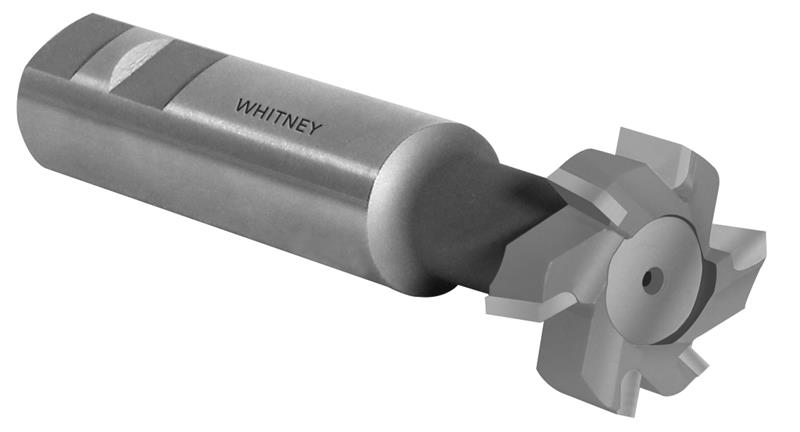

3/4 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C807500
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
Overall Length (Inch) 4-7/16"
UPC 648672300921
Coating/Finish None
Material Carbide Tipped
Cut Width 5/8"
Neck Diameter 25/32"
Neck Length 1-1/2"
Number of Teeth 6
Shank Diameter 1"
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
Brand Whitney Tool
OD Tolerance 0.010"
Metric Diameter 37.31 mm
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Fractional Diameter 1-15/32"
