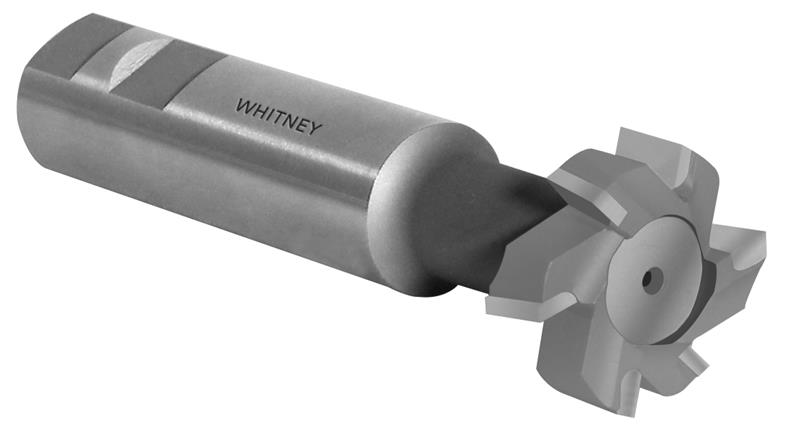

1 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: C810000T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
Neck Diameter 1-1/32"
UPC 648672350933
Coating/Finish TiN
Material Carbide Tipped
Shank Diameter 1-1/4"
Shank Diameter Tolerance +0", -0.0005"
OD Tolerance 0.010"
Brand Whitney Tool
Metric Diameter 46.83 mm
Number of Teeth 8
Overall Length (Inch) 4-13/16"
Fractional Diameter 1-27/32"
Neck Length 1-43/64"
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Cut Width 53/64"
Shank Type Weldon
