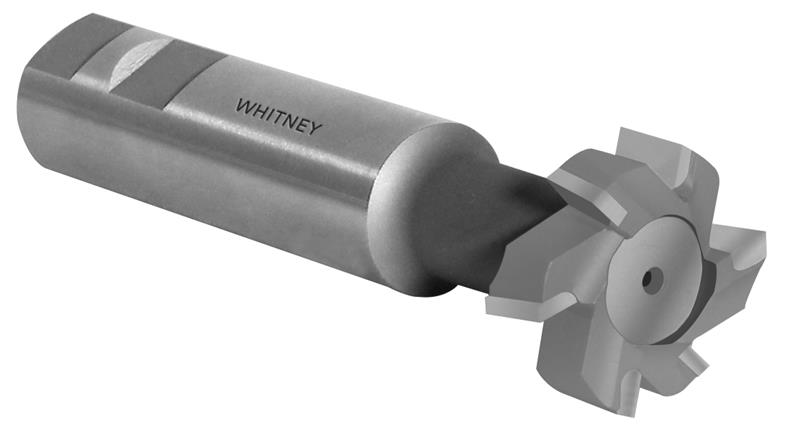

1-1/4 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C812500
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
Metric Diameter 56.36 mm
UPC 648672300945
Shank Diameter 1-1/4"
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Coating/Finish None
Cut Width 1-3/32"
Material Carbide Tipped
OD Tolerance 0.010"
Shank Diameter Tolerance +0", -0.0005"
Brand Whitney Tool
Neck Diameter 1-7/32"
Number of Teeth 8
Fractional Diameter 2-7/32"
Neck Length 1-31/32"
Overall Length (Inch) 5-3/8"
Shank Type Weldon
