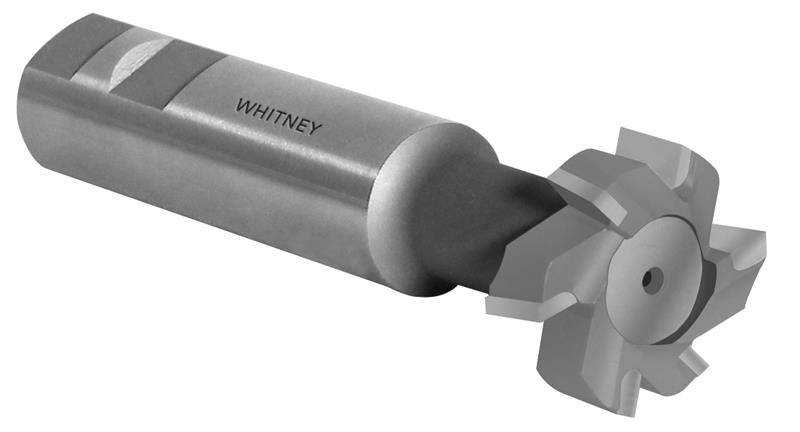

1-1/4 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - TiN Coated/Staggered Tooth

  • Item Code: C812500T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
Fractional Diameter 2-7/32"
Neck Length 1-31/32"
UPC 648672350940
Shank Type Weldon
Number of Teeth 8
Width Tolerance +0", -0.005"
Brand Whitney Tool
Metric Diameter 56.36 mm
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Material Carbide Tipped
Shank Diameter 1-1/4"
Overall Length (Inch) 5-3/8"
Neck Diameter 1-7/32"
Shank Diameter Tolerance +0", -0.0005"
Coating/Finish TiN
Cut Width 1-3/32"
OD Tolerance 0.010"
