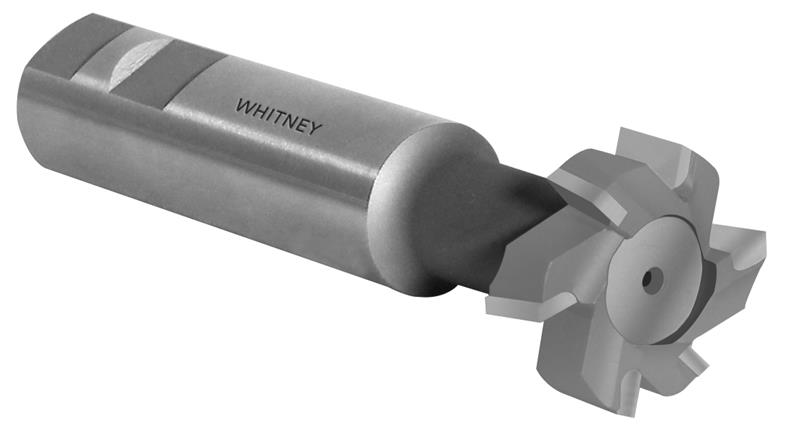

1-1/2 in. Bolt Size Carbide Tipped T-Slot Milling Cutter - Uncoated/Staggered Tooth

  • Item Code: C815000
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney T-Slot Milling Cutters - Carbide Tipped

Staggered Tooth Configuration

Carbide tipped T-slot cutters are a rugged design with free cutting features. The cutters have positive radial rake, right and left hand axial rake, with alternate side cutting teeth for maximum chip clearance.

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300952
Metric Diameter 67.47 mm
Style Bolt Size
Tooth Configuration Alt. 7 deg. Axial Rake
Width Tolerance +0", -0.005"
Brand Whitney Tool
Number of Teeth 8
Shank Diameter 1-1/4"
OD Tolerance 0.010"
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
Coating/Finish None
Cut Width 1-11/32"
Fractional Diameter 2-21/32"
Material Carbide Tipped
Overall Length (Inch) 5-29/32"
Neck Diameter 1-17/32"
Neck Length 2-1/8"
