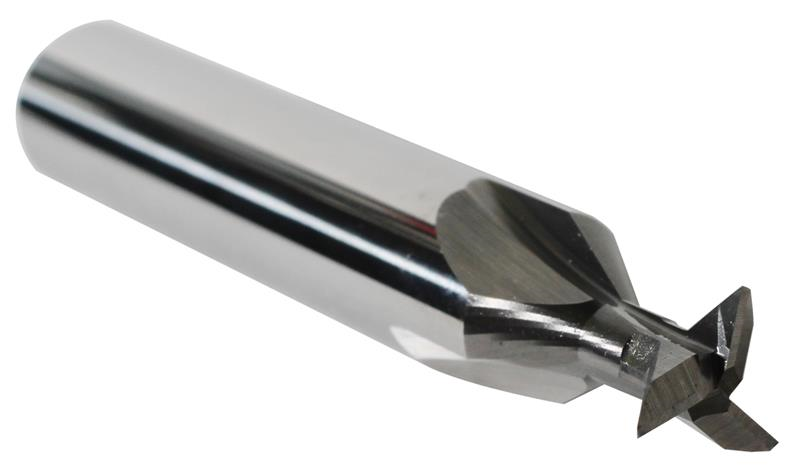

3/16 in. x 45 deg. Solid Carbide Dovetail Milling Cutter - TiN Coated/Straight Tooth

  • Item Code: C901845T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters Carbide

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672354016
Cut Width 3/64"
Included Angle 45
Angle Tolerance 1/4 deg.
Style 45 Degree
Tooth Configuration Straight
Material C2 Micrograin Carbide
OD Tolerance 0.010"
Number of Teeth 2
Shank Diameter Tolerance +0", -0.0005"
Fractional Cutting Diameter 3/16"
Shank Diameter 1/4"
Width Tolerance 0.015"
Coating/Finish TiN
Shank Type Straight
Brand Whitney Tool
Metric Cutting Diameter 4.76 mm
Overall Length (Inch) 2"
