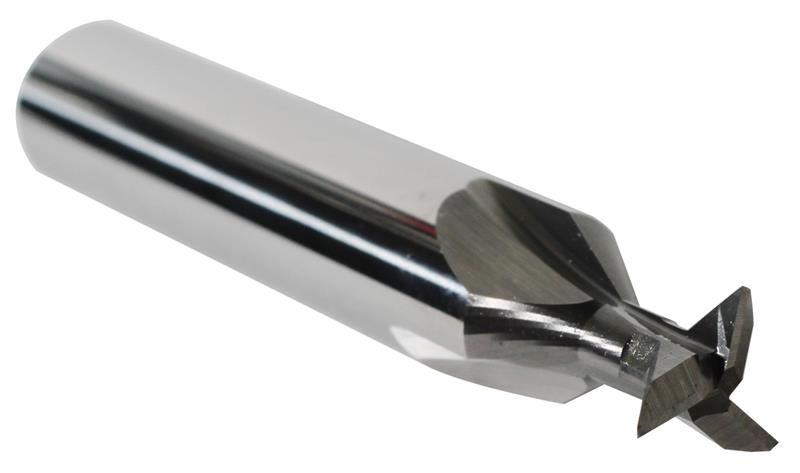

3/16 in. x 60 deg. Solid Carbide Dovetail Milling Cutter - TiN Coated/Straight Tooth
- Item Code: C901860T
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Dovetail Milling Cutters Carbide
Straight Tooth Configuration
Made in USA
Features
Back To Top- Micrograin Carbide
- Right Hand Cut
- Single Angle
- Weldon Shank
Tech Specs
Back To Top| UPC | 648672354047 |
|---|---|
| Material | C2 Micrograin Carbide |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
| Width Tolerance | 0.015" |
| Included Angle | 60 |
| Number of Teeth | 2 |
| Fractional Cutting Diameter | 3/16" |
| Shank Diameter | 1/4" |
| Coating/Finish | TiN |
| Metric Cutting Diameter | 4.76 mm |
| OD Tolerance | 0.010" |
| Overall Length (Inch) | 2" |
| Brand | Whitney Tool |
| Cut Width | 3/32" |
| Shank Type | Straight |
| Angle Tolerance | 1/4 deg. |
| Style | 60 Degree |
