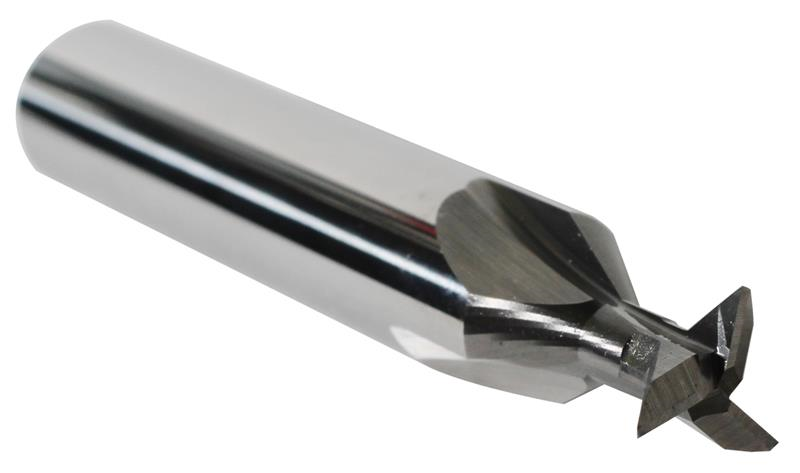

1/4 in. x 45 deg. Solid Carbide Dovetail Milling Cutter - Uncoated/Straight Tooth

  • Item Code: C902545
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters Carbide

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672304028
Coating/Finish None
Fractional Cutting Diameter 1/4"
Shank Type Straight
Tooth Configuration Straight
Number of Teeth 2
Width Tolerance 0.015"
Included Angle 45
Metric Cutting Diameter 6.35 mm
Overall Length (Inch) 2"
Shank Diameter Tolerance +0", -0.0005"
Style 45 Degree
Angle Tolerance 1/4 deg.
OD Tolerance 0.010"
Shank Diameter 1/4"
Brand Whitney Tool
Cut Width 1/16"
Material C2 Micrograin Carbide
