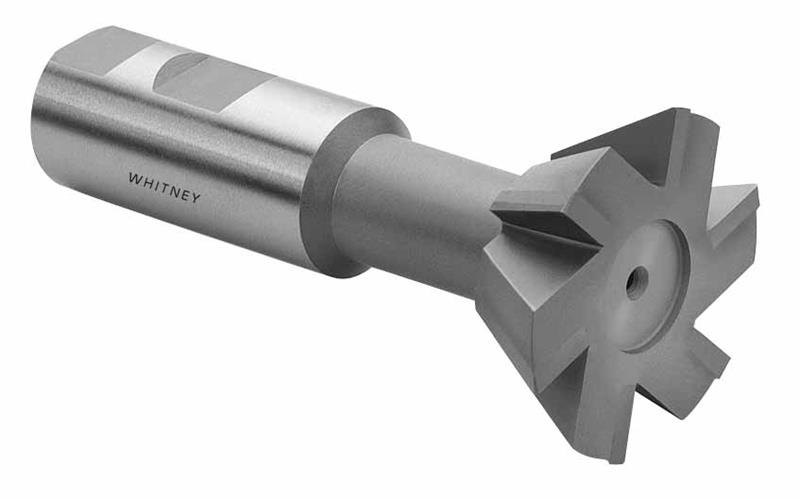

1-1/2 in. x 60 deg. Carbide Tipped Dovetail Milling Cutter - Uncoated/Straight Tooth

  • Item Code: C915060
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters Carbide Tipped

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300839
Coating/Finish None
Included Angle 60
Shank Diameter Tolerance +0", -0.0005"
OD Tolerance 0.010"
Angle Tolerance 1/4 deg.
Metric Cutting Diameter 38.10 mm
Style 60 Degree
Tooth Configuration Straight
Brand Whitney Tool
Cut Width 5/8"
Number of Teeth 4
Shank Diameter 3/4"
Shank Type Weldon
Fractional Cutting Diameter 1-1/2"
Material Carbide Tipped
Overall Length (Inch) 3-1/4"
Width Tolerance 0.015"
