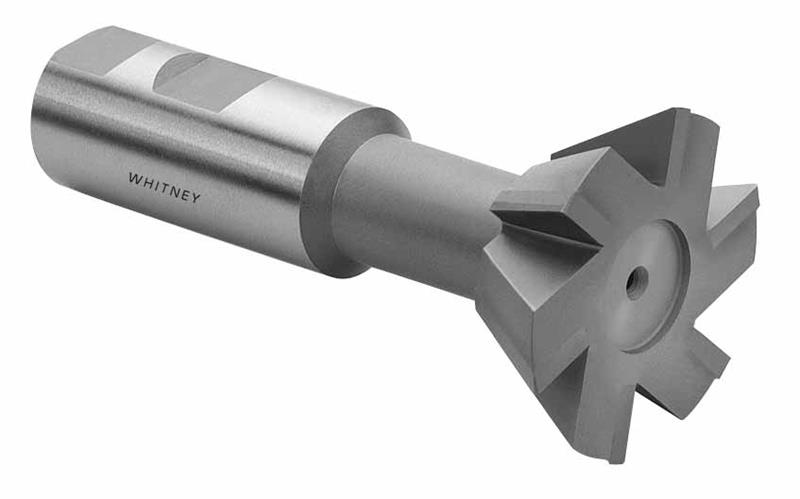

1-1/2 in. x 60 deg. Carbide Tipped Dovetail Milling Cutter - TiN Coated/Straight Tooth
- Item Code: C915060T
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Dovetail Milling Cutters Carbide Tipped
Straight Tooth Configuration
Made in USA
Features
Back To Top- Micrograin Carbide
- Right Hand Cut
- Single Angle
- Weldon Shank
Tech Specs
Back To Top| Metric Cutting Diameter | 38.10 mm |
|---|---|
| UPC | 648672350834 |
| Coating/Finish | TiN |
| Tooth Configuration | Straight |
| Overall Length (Inch) | 3-1/4" |
| Shank Type | Weldon |
| OD Tolerance | 0.010" |
| Shank Diameter | 3/4" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Style | 60 Degree |
| Included Angle | 60 |
| Fractional Cutting Diameter | 1-1/2" |
| Material | Carbide Tipped |
| Width Tolerance | 0.015" |
| Angle Tolerance | 1/4 deg. |
| Brand | Whitney Tool |
| Cut Width | 5/8" |
| Number of Teeth | 4 |
