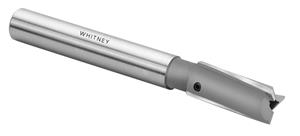

9/16 in. Cut Dia. x 3/16 in. Pilot Hole Dia. HSS Short Series Counterbore

  • Item Code: CBIP0562
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Interchangeable Pilot Counterbores - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Short Series
    • Straight Shank
    • 3-Flute
    • Used for spot facing and counterboring operations. Each tool accepts a wide range of pilots.
    • These tools are end cutting only

Tech Specs

Back To Top
Fractional Pilot Diameter 3/16"
UPC 648672103911
Fractional Cutting Diameter 9/16"
Material High Speed Steel
Shank Type Straight
Brand Whitney Tool
Overall Length (Inch) 4-5?16"
Number of Teeth 3
Tooth Configuration 8 deg. Rt. Hand Helix
Coating Uncoated
OD Tolerance +0.005", +0.010"
Shank Diameter 1/2"
Shank Length 3-1/16"
