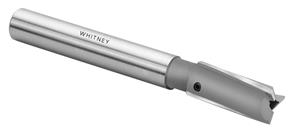

2 in. Cut Dia. x 1/2 in. Pilot Hole Dia. HSS Short Series Counterbore

  • Item Code: CBIP2000
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Interchangeable Pilot Counterbores - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Short Series
    • Straight Shank
    • 3-Flute
    • Used for spot facing and counterboring operations. Each tool accepts a wide range of pilots.
    • These tools are end cutting only

Tech Specs

Back To Top
Overall Length (Inch) 8-3?8"
Fractional Pilot Diameter 1/2"
UPC 648672104215
Coating Uncoated
Shank Length 5-7/8"
Shank Type Straight
Tooth Configuration 8 deg. Rt. Hand Helix
Material High Speed Steel
Number of Teeth 5
Shank Diameter 1-1/2"
OD Tolerance +0.005", +0.010"
Brand Whitney Tool
Fractional Cutting Diameter 2"
